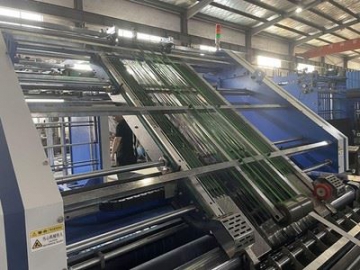

High Speed Automatic Carton Laminating Machine FMZ-1450/1700 (Flute Laminator)

Kostenvoranschlag erhalten

Über uns: http://wity-machinery.com/1-5-carton-laminating-1.html

FMZ-1260/1450/1700 high speed automatic carton laminating machine adopts surface paper and bottom paper automatic feeding system. It is suitable for color printing paper and corrugated board’s automatic pasting.

Features

Special front location with high accuracy
Use overlapping feeding style, making paper conveying more stable
Adopting cutting-edge PLC tracking technology, it can automatically adjust the relevant parameters according to the size of paper, keeping the machine in the best state
Bottom paper feeding adopts rotary telescopic frame, more suitable for warped corrugated paperboard.
The feeder equips pre-feeding device to reduce the stopping time of machine and improve productivity.
Siemens PLC control system adopted can simplify electric equipment's structure for stable and reliable control
Adopt frequency-conversion speed regulation system for infinitely variable speed without shutdown
Automatically display the state of operation
With fault alarm function

Application

Adopting surface paper and bottom paper automatic feeding system, this laminator is ideally suited for automatic pasting of color printing paper and corrugated board

Specification

Model	FMZ-1260	FMZ-1450	FMZ-1700
Max laminating size	1260×1300mm	1450×1300mm	1700×1500mm
Min laminating size	400×400mm	400×400mm	400×400mm
Laminating precision	±1mm	±1mm	±1mm
Laminating speed	6000sheets/h	5000 sheets/h	4000 sheets/h
Paper thickness	250-450g/㎡	250-450g/㎡	250-450g/㎡
Type of bottom paper (corrugated board)	A.B.C.D.E≤7mm	A.B.C.D.E≤7mm	A.B.C.D.E≤7mm
Total power	15kw	15kw	15kw
Overall dimensions(LxWxH)	14.20×2.22×2.68m	14.20×2.22×2.68m	14.20×2.22×2.68m
