Kugellager für Radnabe - 2. Generation

Kostenvoranschlag erhalten

Über uns: http://zd-drivers.de/dc-gear-motor-for-solar-tracking-system.html

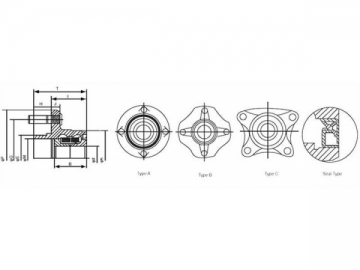

Lager-Code	Abmessungen (mm)						Außenringflansch
	d	F	B	T	E	M	G	K	H	I	J	Schraubengröße	Schraubengröße	Q'ty	Flanschform
DACF25A01	25	133	43	73.4	60	54.25	108	71	19.4	54	12.25	M121.5	14.2	5	A
DACF25A02	25	133	43	73.4	60	54.3	100	71	19.4	54	11	M121.5	0	4	A
DACF27A01	27	148	55	73	66	52	114.3	64	15.5	57.5	9	0		4	A
DACF28A01	28	139	38	64.5	67	58	114.3	70	14	50.5	9	0		4	A
DACF28A02	28	140	48	70.5	67	59	114.3	63	14	50.5	9	M121.5		4	A
DACF28A03	28	140.8	50.5	71	56	47.8	100	66.6	18.9	52.1	4.5	M121.5		4	A
DACF28C01	28	0	42	0	0	61	97	66.2	0	51.8	7.5	0		4	C
DACF30A01	30	117	37	61.3	58	52	98	71.8	17	44.3	10	M121.5	0	4	A
DACF30A02	30	122	47	59.3	54	48	100	68	13.5	56	8	M121.5		4	A
DACF30A03	30	125	50	70.5	56	50	100	68.9	14	56.5	10	M121.5		4	A
DACF30A04	30	126	59	79	56	50.5	100	65.5	14.5	62.5	10	M121.5		5	A
DACF30A05	30	131	43	71.3	65	59	108	76	19	51	13.5	M121.5	0	4	A
DACF30A06	30	136	41	66	56	51	100	68.5	11.5	54.5	8	0		4	A
DACF30A07	30	136	40	66	56	51	100	68.5	11.5	54.5	8	M121.5		4	A
DACF30A08	30	140	50	70.5	67	59	114.3	68.9	14	56.5	9	M121.5		4	A
DACF30B01	30	152	41	67.5	64	58	114.3	67	11.5	55.5	9	M121.5		4	A
DACF30C01	30	0	42	0	0	63	99	68.2	0	51.8	7.5	0		4	C
DACF30C02	30	0	42	0	0	63	99	72	0	58.8	7.5	0		4	C
DACF30C03	30	0	42	0	0	63	99	73.6	0	51.8	7.5	0		4	C
DACF30C04	30	0	50	0	66	58.3	90	68	10	44	10	M121.5	0	4	B
DACF31A01	31	120	40	61	57	50.5	100	73.8	19	42	12	M121.5	0	4	C
DACF32A01	32	128	34	58.2	65	60	108	80	16	42.2	12.5	M121.5	0	4	A
DACF33A01	33	140	47	71.2	67	59	114.3	77	14	54.7	9	M121.5		5	A
DACF345A01	34.5	139	52	65.5	63.26	58	108	86	13.5	52	10	M121.5		5	A
DACF34A01	34	139	42	64.5	67	58	114.3	74	14	50.5	9	M121.5		4	A
DACF34A02	34	139.5	42	70	64	58	114.3	75	15	55	9	M121.5		4	A
DACF35A01	35	137	45	69.5	65	53.3	108	81	20.5	49	12	M121.5		5	A
DACF35A02	35	137	45	74	65	57	110	81	25	49	12	M121.5	0	5	A
DACF36A01	36	140	50	71	67	59	114.3	79	14	57	11	M121.5		5	A
DACF37A01	37	139	45	64	72.5	66	120	84	19	45	11	M121.5	0	5	A
DACF37A02	37	139	45	64	72.5	66	120	80	19	45	11	M121.5	0	5	A
DACF37A03	37	139	45	64	72.5	66	120	80	19	45	11	M121.5	0	5	A
DACF38A01	38	146.5	52	77	70	64	114.3	76.8	15	62	9	M121.5		5	A
DACF40C01	40	0	43	43	84	0	106	84	16.4	26.5	10	M121.5	0	4	C
DACF43C01	43	0	44	44	82.8	0	102	86	16.5	27.5	15	M121.5	0	4	C
