Abgestimmte Schrägkugellager

Kostenvoranschlag erhalten

Über uns: http://bearingfactory.de/6-angular-contact-ball-bearings.html

BezeichnungDer Lager			Grenzanmessung (mm)					Tragzahl (kN)				Granzdrehzahl (rpm)		Positiondes Arbeitspunkts (mm)		Abmessungender Schulter (mm)						Masse (kg)
BezeichnungDer Lager			Grenzanmessung (mm)					Mit cutting cage		Mit pressing cage		Granzdrehzahl (rpm)		Positiondes Arbeitspunkts (mm)		Abmessungender Schulter (mm)						Masse (kg)

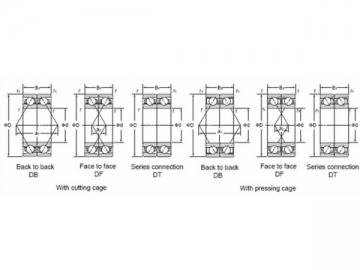

Back to back	Face to face	Series	d	D	B1	r	r1	Cr	Cor	Cr	Cor	Fett	Öl	a1	a2	da	db	Da	Db	ra	rb	ca.
DB	DF	DT	d	D	B1	(min.)	(min.)	Cr	Cor	Cr	Cor	Fett	Öl	a1	a2	(min.)	(min.)	(max.)	(max.)	(max.)	(max.)	ca.
7000BDB	7000BDF	7000BDT	10	26	16	0.3	0.15	7.55	4.35	0	0	20000	27000	23.1	7.1	12.5	0	23.5	24.8	0.3	0.15	0.042
7000CDB	7000CDF	7000CDT	10	26	16	0.3	0.15	8.6	4.95	0	0	37000	50000	12.7	3.3	12.5	0	23.5	24.8	0.3	0.15	0.042
7000DB	7000DF	7000DT	10	26	16	0.3	0.15	8.1	4.65	0	0	27000	34000	18.2	2.2	12.5	0	23.5	24.8	0.3	0.15	0.042
7001BDB	7001BDF	7001BDT	12	28	16	0.3	0.15	8.1	5.05	0	0	18000	24000	25.2	9.2	14.5	0	25.5	26.8	0.3	0.15	0.048
7001CDB	7001CDF	7001CDT	12	28	16	0.3	0.15	9.4	5.85	0	0	32000	43000	13.5	2.5	14.5	0	25.5	26.8	0.3	0.15	0.048
7001DB	7001DF	7001DT	12	28	16	0.3	0.15	8.8	5.45	0	0	23000	29000	19.9	3.9	14.5	0	25.5	26.8	0.3	0.15	0.048
7002BDB	7002BDF	7002BDT	15	32	18	0.3	0.15	9.05	6.3	0	0	15000	20000	29.2	11.1	17.5	0	29.5	30.8	0.3	0.15	0.07
7002CDB	7002CDF	7002CDT	15	32	18	0.3	0.15	10.7	7.4	0	0	28000	37000	15.3	2.7	17.5	0	29.5	30.8	0.3	0.15	0.068
7002DB	7002DF	7002DT	15	32	18	0.3	0.15	9.95	6.85	0	0	20000	26000	22.6	4.6	17.5	0	29.5	30.8	0.3	0.15	0.068
7003BDB	7003BDF	7003BDT	17	35	20	0.3	0.15	9.9	7.5	0	0	14000	18000	32.2	12.2	19.5	0	32.5	33.8	0.3	0.15	0.096
7003CDB	7003CDF	7003CDT	17	35	20	0.3	0.15	11.9	8.95	0	0	25000	33000	17.1	2.9	19.5	0	32.5	33.8	0.3	0.15	0.087
7003DB	7003DF	7003DT	17	35	20	0.3	0.15	10.9	8.25	0	0	18000	23000	25.3	5.3	19.5	0	32.5	33.8	0.3	0.15	0.09
7004BDB	7004BDF	7004BDT	20	42	24	0.6	0.3	15.2	11.1	0	0	11000	15000	38.4	14.4	24.5	0	37.5	39.5	0.3	0.3	0.158
7004CDB	7004CDF	7004CDT	20	42	24	0.6	0.3	18	13.2	0	0	21000	28000	20.4	3.6	24.5	0	37.5	39.5	0.3	0.3	0.158
7004DB	7004DF	7004DT	20	42	24	0.6	0.3	16.7	12.2	0	0	15000	19000	30.2	6.2	24.5	0	47.5	39.5	0.3	0.3	0.158
7005BDB	7005BDF	7005BDT	25	47	24	0.6	0.3	16.6	13.4	0	0	10000	13000	42.3	18.3	29.5	0	42.5	44.5	0.3	0.3	0.182
7005CDB	7005CDF	7005CDT	25	47	24	0.6	0.3	20.0.	16	0	0	18000	24000	21.7	2.3	29.5	0	42.5	44.5	0.3	0.3	0.182
7005DB	7005DF	7005DT	25	47	24	0.6	0.3	18.3	14.8	0	0	13000	17000	32.9	8.9	29.5	0	42.5	44.5	0.3	0.3	0.182
7006BDB	7006DF	7006DT	30	55	26	1	0.6	23.6	20.2	0	0	11000	14000	37.5	11.5	35.5	0	49.5	50.5	1	0.5	0.266
7007BDB	7007BDF	7007BDT	35	62	28	1	0.6	25.7	22.8	0	0	7400	9900	55.1	27.1	40.5	0	56.5	57.5	1	0.5	0.341
7007CDB	7007CDF	7007CDT	35	62	28	1	0.6	31	27.4	0	0	13000	18000	27	1	40.5	0	56.5	57.5	1	0.5	0.338
7007DB	7007DF	7007DT	35	62	28	1	0.6	28.4	25.2	0	0	9800	12000	42.3	14.3	40.5	0	56.5	57.5	1	0.5	0.339
7008BDB	7008BDF	7008BDT	40	68	30	1	0.6	27.4	26.4	0	0	6600	8900	60.5	30.5	45.5	0	62.5	63.5	1	0.5	0.424
7008CDB	7008CDF	7008CDT	40	68	30	1	0.6	33.4	31.8	0	0	12000	16000	29.5	0.5	45.5	0	62.5	63.5	1	0.5	0.417
7008DB	7008DF	7008DT	40	68	30	1	0.6	30.4	29.2	0	0	8900	11000	46.3	16.3	45.5	0	62.5	63.5	1	0.5	0.419
7009BDB	7009BDF	7009BDT	45	75	32	1	0.6	32.5	32	0	0	6000	8000	66.3	34.3	50.5	0	69.5	70.5	1	0.5	0.546
7009CDB	7009CDF	7009CDT	45	75	32	1	0.6	39.6	38.5	0	0	11000	15000	32.1	0.1	50.5	0	69.5	70.5	1	0.5	0.531
7009DB	7009DF	7009DT	45	75	32	1	0.6	36.2	35.4	0	0	8000	10000	50.7	18.7	50.5	0	69.5	70.5	1	0.5	0.531
7010BDB	7010BDF	7010BDT	50	80	32	1	0.6	34.5	36.2	0	0	5500	7400	70.5	38.5	55.5	0	74.5	75.5	1	0.5	0.595
