This multifunctional laminated film pouch bag making machine is for making 3 side sealing, zipper bag , 4 side sealing bag, stand up pouch bag (doypack bag) and center sealing bag.

Features
  • Main electric scheme: 4 servo motor for traction, with PLC used Panasonic from Japan., Touch Screen from Taiwan; main driving is alternating current with YASKAWA from JAPAN Transducer, automatic constant tension for unwinding.
  • Thermal-sealing knife’s quantity of heat:

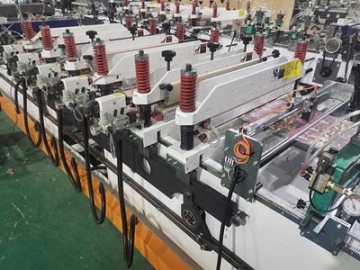

  • Vertical-sealing adopts 5 groups for heating, cooling fluctuation from up and down;
  • Vertical sealing adopt 1group for center sealing heating and zipper;
  • Bottom sealing adopt 3 groups heating, 1 group for cooling .
  • The type of control system: SSF-Ⅱ High speed laminating film bag making machine control system
Specification
Speed of bag making 40-140pcs/min
Line speed ≤30 m/min (decided according the material)
Max width of bag 580mm
Max height of bag 380mm x Skip (the skip ≤6, which mean the max width size of bag is 380x6=2280mm )
Dimension of roll material ф600*1200mm (diameter* web-width)
Accuracy of orientation ≤± 0.5mm
Quantity of temperature heating 20
Bound of temperature 0-300 ℃
Total power 52kw
Overall dimension (L*W*H) 12500×2450×1920mm
Weight of machine 5900 kg
Color white color of machines, red color for cover and door
Air compressor 6HP
