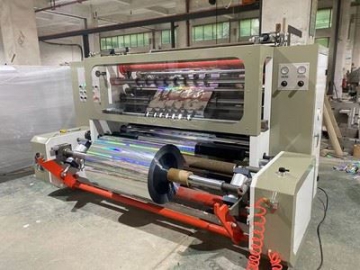

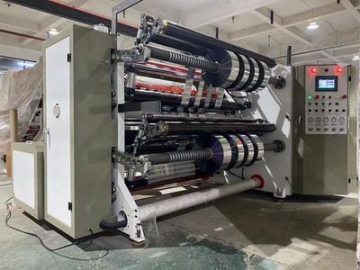

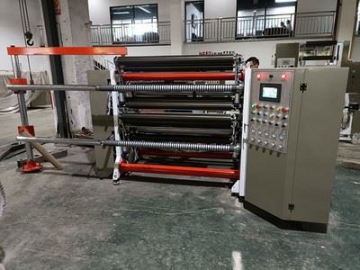

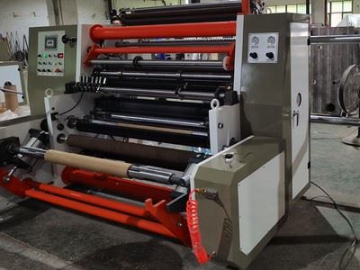

High Speed Slitting Machine (Pneumatic Loading), DFQ-A

High Speed Slitting Machine (Pneumatic Loading), DFQ-A
High Speed Slitting Machine (Pneumatic Loading), DFQ-A
High Speed Slitting Machine (Pneumatic Loading), DFQ-A
High Speed Slitting Machine (Pneumatic Loading), DFQ-A
High Speed Slitting Machine (Pneumatic Loading), DFQ-A
Kostenvoranschlag erhalten

This High Speed Slitting Rewinding Machine suits to the slitting of various ultra-large type coiled materials, such as paper, glass paper, aluminum-foil paper, aluminum foil, adhesive sticker, film (PVC, OPP, PET, CPP) for flexible packaging industry. It can slit and rewind different width of roll materials, which is equipped with PLC control, LPC or EPC web-guiding system. It has round knife and razor knife, respectively for paper slitting and film slitting.

Features
  • The unwinding system can with LPC or EPC full automatic web-guiding system.
  • PLC and touch screen control
  • Round blade and razor blade slitting device
  • Guiding roller with imported and China best brand bearing
  • Rewinding pressing roller with constant pressing structure to ensure the stable rewinding.
  • User can choose unloading shelf system according need(option)
  • With cantilever type rewinding structure
  • Unwinder manual loading structure
  • Rewinding by Differential slip shaft(option)
  • YASKAWA Brand Frequency Converter for motor speed regulation(option)
Specification
Model
DFQ-A1
DFQ-A2
DFQ-A3
Max.unwinding diameter ¢600mm ¢600mm ¢600mm
Max.rewinding diameter ¢500mm ¢500mm ¢500mm
Max. width 1100mm or 1300mm
Min. slitting width 50mm 50mm 50mm
Web guiding control Photocell Photocell Photocell
Precision ≤±0.5mm ≤±0.5mm ≤±0.5mm
Main driven system Single motor Double motor Three motor
Control style PLC touch screen PLC touch screen PLC touch screen
Tension control style Taper automatic regulation
Mechanical speed 0-250m/min 0-350m/min 0-350m/min
Unwinding shaft Air shaft Air shaft Air shaft
Rewinding shaft Air shaft Differential slip shaft Air shaft(standard) or Differential slip shaft (option)
Weight About 2500kg About 3000kg About 3000kg
