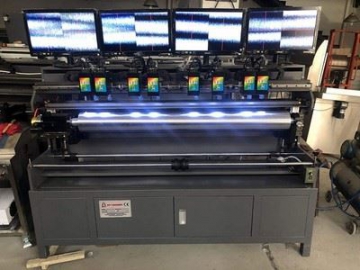

Flexo Plate Mounting Machine

Flexo Plate Mounting Machine
Flexo Plate Mounting Machine
Flexo Plate Mounting Machine
Flexo Plate Mounting Machine
Kostenvoranschlag erhalten
Über uns: http://wity-machinery.com/1-15-flexo-plate-mounting-machine-9.html
Features
  • ThisFlexo Plate Mounting Machine has high precision linear guide rails for horizontal positioning. The camera position is adjustable vertically, by using a precision screw rod system.
  • Has magnify zoom lens, high definition CCD camera, and LCD displayer.
  • The two cameras can be moved individually, which helps ensure convenient and accurate positioning of the cross line.
  • The CCD camera can be adjusted in six directions, and the parallelism is adjustable. This ensures high precision of plate mounting.
  • A micro-adjustment system is available to ensure the accurate movement of the flexo plate. After mounting, the Desktop Type Flexo Plate Mounting Machine can check the precision directly and assure the plate mounting accuracy.
  • Pneumatic locking system is available, which ensures convenient loosen and tighten, fast plate mounting, and easy operation. Thus, the working efficiency is greatly improved.
  • Suitable for flexo plate and resin plate mounting.
Specification
Model
YG-450
YG-650
Plate mounting width 120~450mm 120~650mm
Plate cylinder diameter 55~260mm 55~260mm
Power 0.5kw 0.5kw
Overall dimension 128x600x1050mm 128x700x1050mm
Weight 90kg 100kg
Voltage 95V~245V/1P 95V~245V/1P
Air supply 3~4mpa 3~4mpa
