Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H

Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
Automatic Multi-functional Vertical Laminating Machine with Hot Knife Cutting, FM-H
Kostenvoranschlag erhalten
Über uns: http://wity-machinery.com/automatic-vertical-laminating-machine-fm-b/index.html

FM-H Laminating Machine is a multi-function machine suitable for water base glue, solvent base glue, thermal film and glueless film lamination. It is with the features: compact structure, stable running, high precision, convenient operation and maintenance. This model is equipped with hot knife cutting, which is suitable for different kinds of film separating. The hot knife system is controlled by servo motor, determines the position of the cut point by detecting the change of the thickness of the paper overlap, which is precise and efficient.

Features
  • High speed feeder ensures stable and accurate sheet feeding and easy operation.
  • Non-stop feeding and stacking greatly shortens preparation time.
  • Overlap unit controlled by servomotor ensures accuracy.
  • Chromed high brightness coupling rollers to coat evenly and economically.
  • Strong heated air drying system for rapid and efficient drying.
  • Anti-curl unit suitable for thin paper laminating treatment.
  • Heating steel roller adopt electromagnetic heating system, rapid heating, energy saving and environmental protection.
  • Touch screen control makes operation more convenient.
  • Elegant and unique appearance designed by professional industrial design company.
Specification
Model FM-H
Max Paper Size 1080×880mm
Min Paper Size 360×320mm
Speed 10-110m/min
Paper Thickness (Round Knife) 80-500gsm (Above 100gsm easy to adjust, E type corrugated paper)
Paper Thickness (Hot Knife) ≥157gms
Overlap Precision ≤±1.5mm
Film Thickness (common micrometer) 10/12/15
Common Glue Thickness 4-10g/m2
Pre-Gluing Film Thickness 1005,1006,1206g/m2 (1508 and 1208 suit deep embossing paper)
Non-Stop Feeding Height 1300mm
Collector Paper Height (incl. pallet) 1300mm
Main motor power 5kw
Whole machine power 70kw
Working power 30-45kw
Power 380V-50Hz-3P
working Pressure 15Mpa
Air consumption 80m³/h
Cable Thickness 25mm2
Weight 7800kgs
Dimension (layout) 8120*1995*3170mm
Loading 40HQ
Verwandte Produkte
Multi-functional Vertical Type Laminating Machine (Film Laminator)
Multi-functional Vertical Type Laminating Machine (Film Laminator)
FM-E Automatic Vertical Laminating Machine
FM-E Automatic Vertical Laminating Machine
Automatic Thermo Film Laminating Machine, FM1050E
Automatic Thermo Film Laminating Machine, FM1050E
Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
Automatic Flatbed Die Cutting Machine with Stripping (Die Cutter)
Feedback
Andere Produkte
Pumplaser mit Multi-Mode
Pumplaser mit Multi-Mode
Multi-Color/ Mehrfarbige/ Bunte LED Streifen (RGBCCT)
Multi-Color/ Mehrfarbige/ Bunte LED Streifen (RGBCCT)
PP-H Rohrsysteme
PP-H Rohrsysteme
H-B2 Vollhartmetallfräser/ Radiusfräser, 2 Schneiden
H-B2 Vollhartmetallfräser/ Radiusfräser, 2 Schneiden
Aktuellste
Permanentmagnet Mikrowellenzirkulatoren & Isolatoren Permanentmagnet Mikrowellenzirkulatoren & Isolatoren magnet-materials.de
Selbstfahrende Elektroscherenbühne, XE-W Serie Selbstfahrende Elektroscherenbühne, XE-W Serie aerial-liftequip.de
Gussteile aus Edelstahl Gussteile aus Edelstahl metalcasting-service.de
Serielle Heizkabel und Heizbänder, konstante Leistung, RDC Serielle Heizkabel und Heizbänder, konstante Leistung, RDC heattrace-cable.de
Mehr
FV70 Mini Stabfeuerzeuge FV70 Mini Stabfeuerzeuge lighter-factory.de
Rotorblattlager für Windkraftanlagen Rotorblattlager für Windkraftanlagen xql-slewingbearing.de
Medikamentendosen/ Pillendosen/ Medikamentendosierer/ Kapseldosen, SP-1004 Medikamentendosen/ Pillendosen/ Medikamentendosierer/ Kapseldosen, SP-1004 custom-packages.de
SP-1U/2U Serie DC Hochleistungs-Netzteil/Netzgerät SP-1U/2U Serie DC Hochleistungs-Netzteil/Netzgerät electronics-test.de
Prüfkammer für kombinierte Temperatur- und Feuchtigkeitsprüfung Prüfkammer für kombinierte Temperatur- und Feuchtigkeitsprüfung testing-chamber.de
Spinnvlies (S/SS/SSS) Spinnvlies (S/SS/SSS) nonwoven-materials.de
Andere Produkte
Functional Trainer / Kabelzugmaschine Functional Trainer / Kabelzugmaschine jx-fitness-products.de
Multi-Achsen Drehtisch Multi-Achsen Drehtisch donglingtest.de
Pumplaser mit Multi-Mode Pumplaser mit Multi-Mode sensing-photonics.de

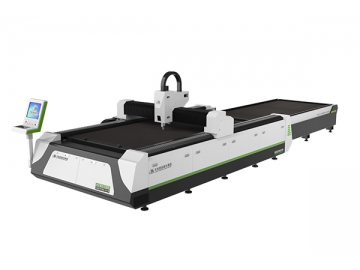

CMO1530-H-A Faserlaser-Schneidemaschine mit Shuttle-Tischen CMO1530-H-A Faserlaser-Schneidemaschine mit Shuttle-Tischen lasercut-group.de
