Stützrollen - NKIA Series
Kostenvoranschlag erhalten

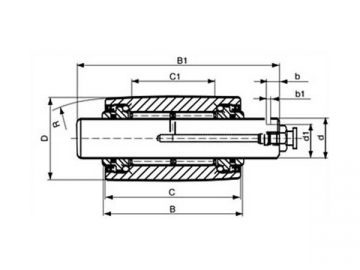

| Lager-Code | Referenz index | d | D | C | B | B1 | C1 | b | b1 | d1 | R | C | Co | Cw | Cow |
| Italien | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | KN | KN | KN | KN | |
| NKIA12X25.5X61.5-2RS | MRSC.0012 | 12 | 25.5 | 30 | 32 | 61.5 | 25 | 4.5 | 2 | 9 | 140 | 9 | 15 | 8 | 13 |
| NKIA14X27X75-2RS | MRSC.0014 | 14 | 27 | 41 | 43 | 75 | 25 | 5 | 2.5 | 11 | 140 | 13.5 | 20 | 11.5 | 17 |
| NKIA15X31X77-2RS | MRSC.0015 | 15 | 31 | 44 | 46 | 77 | 38 | 6 | 2.5 | 12 | 145 | 18 | 23 | 16 | 21 |
| NKIA15X31X82-2RS | MRSC.0016 | 15 | 31 | 46 | 48 | 82 | 38 | 6 | 2.5 | 12 | 145 | 18 | 23 | 16 | 21 |
| NKIA18X33X90-2RS | MRSC.0017 | 15 | 33 | 57 | 58 | 90 | 39 | 5 | 2.5 | 15 | 145 | 20 | 37 | 17 | 30 |
| NKIA18X36X95-2RS | MRSC.0018 | 18 | 36 | 62 | 64 | 95 | 34 | 6 | 2.5 | 15 | 145 | 25 | 46 | 22 | 44 |
| NKIA20X40X110-2RS | MRSC.0020 | 20 | 41 | 68 | 70 | 110 | 42 | 7 | 2.5 | 17 | 145 | 40 | 68 | 35 | 62 |
| NKIA20X41X81-2RS | MRSC.0019 | 20 | 41 | 48 | 50 | 81 | 40 | 6 | 2.5 | 17 | 50 | 34 | 52 | 30 | 46 |
| NKIA25X48X133-2RS | MRSC.0024 | 25 | 48 | 83 | 85 | 133 | 59 | 7 | 2.5 | 22 | 180 | 66 | 112 | 52 | 90 |
| NKIA25X48X95-2RS | MRSC.0023 | 20 | 48 | 58 | 60 | 95 | 48 | 6 | 2.5 | 22 | 145 | 40 | 75 | 35 | 64 |
| NKIA25X52X110-2RS | MRSC.0026 | 28 | 52 | 69 | 72 | 110 | 55 | 7 | 3 | 25 | 180 | 45 | 110 | 39 | 100 |
| NKIA25X52X138-2RS | MRSC.0025 | 25 | 52 | 78 | 80 | 138 | 60 | 7 | 3 | 22 | 180 | 79 | 124 | 56 | 102 |
| NKIA30X56X133-2RS | MRSC.0028 | 30 | 56 | 83 | 85 | 133 | 59 | 7 | 3 | 27 | 180 | 67 | 132 | 53 | 102 |
| NKIA30X60X99.5-2RS | MRSC.0029 | 30 | 60 | 57 | 58.5 | 99.5 | 46 | 10 | 5 | 27 | 180 | 62 | 109 | 47 | 99 |
| NKIA32X63X133-2RS | MRSC.0030 | 32 | 63 | 83 | 85 | 133 | 51 | 7 | 3 | 27 | 180 | 75 | 118 | 63 | 105 |
| NKIA32X66X178-2RS | MRSC.0032 | 32 | 66 | 103 | 105 | 178 | 93 | 7 | 3 | 29 | 180 | 104 | 130 | 74 | 108 |
| NKIA50X83X190-2RS | MRSC.0050 | 50 | 83 | 128 | 130 | 190 | 94 | 9 | 4 | 45.5 | 180 | 120 | 300 | 88 | 88 |
