HC Serie Spindellager

Kostenvoranschlag erhalten

Über uns: http://converting-equips.de/2-3-label-slitting-machine.html

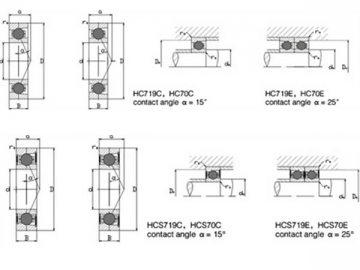

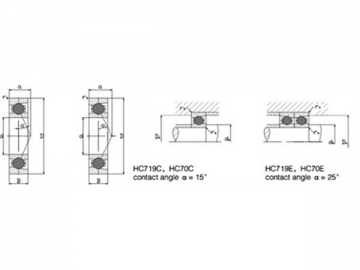

Lager-Code	Abmessungen				a	Masse	Tragfähigkeit		Erreichbare Geschwindigkeit	Öl	Widerlager	Abmessungen
	d	D	B	rsmin		≈	CrKN	CorKN	Fett	Zum Wegwerfen	da h12	Da H12	ramax
	mm	mm	mm	mm		(kg)	CrKN	CorKN	min-1		mm	mm	mm
HC7000C.T.P4S.UL	10	26	8	0.3	6	0.02	1.9	1.1	90000	150000	15	20.5	0.3
HC7000E.T.P4S.UL	10	26	8	0.3	8	0.02	1.8	1.06	75000	120000	15	20.5	0.3
HC7001C.T.P4S.UL	12	28	8	0.3	7	0.02	1.86	1.12	80000	130000	17	22.5	0.3
HC7001E.T.P4S.UL	12	28	8	0.3	9	0.02	1.76	1.08	70000	110000	17	22.5	0.3
HC7002C.T.P4S.UL	15	32	9	0.3	8	0.03	2.6	1.7	70000	110000	20	26.5	0.3
HC7002E.T.P4S.UL	15	32	9	0.3	10	0.03	2.45	1.6	60000	90000	20	26.5	0.3
HC7003C.T.P4S.UL	17	35	10	0.3	9	0.04	2.65	1.83	63000	95000	22.5	29	0.3
HC7003E.T.P4S.UL	17	35	10	0.3	11	0.04	2.5	1.73	53000	80000	22.5	29	0.3
HC7004C.T.P4S.UL	20	42	12	0.6	10	0.07	4.3	3.2	53000	80000	27	34.5	0.6
HC7004E.T.P4S.UL	20	42	12	0.6	13	0.07	4.05	3	45000	67000	27	34.5	0.6
HC7005C.T.P4S.UL	25	47	12	0.6	11	0.09	4.3	3.45	45000	67000	32	39.5	0.6
HC7005E.T.P4S.UL	25	47	12	0.6	14	0.09	4.05	3.25	38000	56000	32	39.5	0.6
HC7006C.T.P4S.UL	30	55	13	1	12	0.12	6	4.9	38000	56000	37.5	47	1
HC7006E.T.P4S.UL	30	55	13	1	16	0.12	5.7	4.65	32000	48000	37.5	47	1
HC7007C.T.P4S.UL	35	62	14	1	14	0.16	6.4	5.85	34000	50000	43.5	53	1
HC7007E.T.P4S.UL	35	62	14	1	18	0.16	6.1	5.4	28000	43000	43.5	53	1
HC7008C.T.P4S.UL	40	68	15	1	15	0.21	6.8	6.55	30000	45000	49	58.5	1
HC7008E.T.P4S.UL	40	68	15	1	20	0.21	6.4	6.1	26000	40000	49	58.5	1
HC7009C.T.P4S.UL	45	75	16	1	16	0.25	8.8	8.5	26000	40000	54	65.5	1
HC7009E.T.P4S.UL	45	75	16	1	22	0.25	8.3	8	24000	38000	54	65.5	1
HC7010C.T.P4S.UL	50	80	16	1	17	0.27	9.15	9.15	24000	38000	59	70.5	1
HC7010E.T.P4S.UL	50	80	16	1	23	0.27	8.65	8.5	22000	36000	59	70.5	1
HC7011C.T.P4S.UL	55	90	18	1.1	19	0.35	12.9	13.2	22000	36000	65.5	79	1
HC7011E.T.P4S.UL	55	90	18	1.1	26	0.35	12.2	12.2	19000	32000	65.5	79	1
HC7012C.T.P4S.UL	60	95	18	1.1	19	0.37	13.4	14	20000	34000	70.5	84	1
HC7012E.T.P4S.UL	60	95	18	1.1	27	0.38	12.7	13.2	18000	30000	70.5	84	1
HC7013C.T.P4S.UL	65	100	18	1.1	20	0.4	13.7	15	20000	34000	75.5	89	1
HC7013E.T.P4S.UL	65	100	18	1.1	28	0.4	13.9	14	17000	28000	75.5	89	1
HC7014C.T.P4S.UL	70	110	20	1.1	22	0.61	18	19.6	18000	30000	82	97.5	1
HC7014E.T.P4S.UL	70	110	20	1.1	31	0.61	17	18.3	13000	20000	82	97.5	1
HC7015C.T.P4S.UL	75	115	20	1.1	23	0.65	18.3	20	17000	28000	87	102.5	1
HC7015E.T.P4S.UL	75	115	20	1.1	32	0.64	17.3	18.6	15000	24000	87	102.5	1
HC7016C.T.P4S.UL	80	125	22	1.1	25	0.87	21.6	24.5	16000	26000	93.5	111	1
HC7016E.T.P4S.UL	80	125	22	1.1	35	0.87	20.4	22.8	13000	20000	93.5	111	1
HC7017C.T.P4S.UL	85	130	22	1.1	25	0.92	22	25	15000	24000	98.5	116	1
