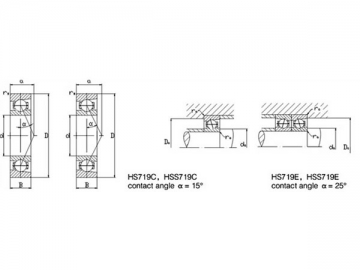

HS Serie Spindellager

Kostenvoranschlag erhalten

Über uns: http://slewing-ringbearing.de/2-1-10-jxsu-series-crossed-roller-bearing.html

Lager- Code	Abmessungen				a	Masse	Tragfähigkeit		Erreichbare Geschwindigkeit	Öl	Widerlager	Abmessungen
	d	D	B	rsmin		≈	CrKN	CorKN	Fett	Zum Wegwerfen	da h12	Da H12	ramax
	mm	mm	mm	mm		(kg)	CrKN	CorKN	min-1		mm	mm	mm
HS7000C.T.P4S.UL	10	26	8	0.3	6	0.02	2.75	1.6	80000	130000	15	20.5	0.3
HS7000E.T.P4S.UL	10	26	8	0.3	8	0.02	2.6	1.5	67000	100000	15	20.5	0.3
HS7001C.T.P4S.UL	12	28	8	0.3	7	0.02	2.7	1.63	70000	110000	17	22.5	0.3
HS7001E.T.P4S.UL	12	28	8	0.3	9	0.02	2.55	1.53	60000	90000	17	22.5	0.3
HS7002C.T.P4S.UL	15	32	7	0.3	8	0.03	3.75	2.45	60000	90000	20	26.5	0.3
HS7002E.T.P4S.UL	15	32	7	0.3	10	0.03	3.55	2.32	50000	75000	20	26.5	0.3
HS7003C.T.P4S.UL	17	35	10	0.3	9	0.04	3.8	2.65	53000	80000	22.5	29	0.3
HS7003E.T.P4S.UL	17	35	10	0.3	11	0.04	3.65	2.5	45000	67000	22.5	29	0.3
HS7004C.T.P4S.UL	20	42	12	0.6	10	0.07	6.2	4.55	45000	67000	27	34.5	0.6
HS7004E.T.P4S.UL	20	42	12	0.6	13	0.07	5.85	4.3	38000	56000	27	34.5	0.6
HS7005C.T.P4S.UL	25	47	12	0.6	11	0.08	6.3	4.9	38000	56000	32	34.5	0.6
HS7005E.T.P4S.UL	25	47	12	0.6	14	0.08	6	4.65	34000	50000	32	34.5	0.6
HS7006C.T.P4S.UL	30	55	13	1	12	0.12	8.8	7.1	32000	48000	37.5	47	1
HS7006E.T.P4S.UL	30	55	13	1	16	0.12	8.3	6.7	28000	43000	37.5	47	1
HS7007C.T.P4S.UL	35	62	14	1	14	0.16	9.3	8.3	28000	43000	43.5	53	1
HS7007E.T.P4S.UL	35	62	14	1	18	0.16	8.8	7.8	24000	38000	43.5	53	1
HS7008C.T.P4S.UL	40	68	15	1	15	0.21	10	9.3	26000	40000	49	58.5	1
HS7008E.T.P4S.UL	40	68	15	1	20	0.21	9.3	8.65	22000	36000	49	58.5	1
HS7009C.T.P4S.UL	45	75	16	1	16	0.27	12.9	12.2	24000	38000	54	65.5	1
HS7009E.T.P4S.UL	45	75	16	1	22	0.27	12.9	11.4	20000	34000	54	65.5	1
HS7010C.T.P4S.UL	50	80	16	1	17	0.3	13.4	13.2	22000	36000	59	70.5	1
HS7010E.T.P4S.UL	50	80	16	1	23	0.29	12.5	12.2	18000	30000	59	70.5	1
HS7011C.T.P4S.UL	55	90	18	1.1	19	0.41	18.6	19	19000	32000	65.5	79	1
HS7011E.T.P4S.UL	55	90	18	1.1	26	0.41	17.6	17.6	17000	28000	65.5	79	1
HS7012C.T.P4S.UL	60	95	18	1.1	19	0.45	19.3	20	18000	30000	70.5	84	1
HS7012E.T.P4S.UL	60	95	18	1.1	27	0.45	18.3	19	15000	24000	70.5	84	1
HS7013C.T.P4S.UL	65	100	18	1.1	20	0.47	20	21.6	17000	28000	75.5	89	1
HS7013E.T.P4S.UL	65	100	18	1.1	28	0.47	19	20	15000	24000	75.5	89	1
HS7014C.T.P4S.UL	70	110	20	1.1	22	0.64	26	28	16000	26000	82	97.5	1
HS7014E.T.P4S.UL	70	110	20	1.1	31	0.64	24.5	26	13000	20000	82	97.5	1
HS7015C.T.P4S.UL	75	115	20	1.1	23	0.68	26.5	29	15000	24000	87	102.5	1
HS7015E.T.P4S.UL	75	115	20	1.1	32	0.68	25	27	13000	20000	87	102.5	1
HS7016C.T.P4S.UL	80	125	22	1.1	25	0.93	31.5	34.5	14000	22000	93.5	111	1
HS7016E.T.P4S.UL	80	125	22	1.1	35	0.93	30	32.5	12000	19000	93.5	111	1
HS7017C.T.P4S.UL	85	130	22	1.1	25	0.97	32	36	13000	20000	98.5	116	1
