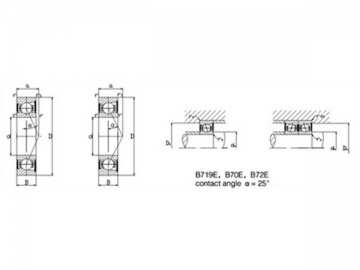

B Serie Spindellager

Kostenvoranschlag erhalten

Über uns: http://north-glass.de/1-1-3-glass-tempering-machine/index.html

Lager-Code	Abmessungen					a	Masse	Tragfähigkeit		Erreichbare Geschwindigkeit	Öl	Widerlager	Abmessungen
	d	D	B	rsmin	r1smin		≈	CrKN	CorKN	Fett	Zum Wegwerfen	DaH12	DaH12	ramax	ra1max
	mm	mm	mm	mm	mm		(kg)			min-1		mm	mm	mm	mm
B7000C.T.P4S.UL	10	26	8	0.3	0.3	6	0.02	5.3	2.5	60000	90000	13	22.5	0.3	0.1
B7000E.T.P4S.UL	10	26	8	0.3	0.3	8	0.02	5.1	2.4	56000	85000	13	22.5	0.3	0.1
B7001C.2RSD.T.P4S.UL	12	28	8	0.3	0.3	5	0.02	5.85	2.9	53000		14.5	25.5	0.3	0.1
B7001C.T.P4S.UL	12	28	8	0.3	0.3	5	0.02	5.85	2.9	53000	80000	14.5	25.5	0.3	0.1
B7001E.2RSD.T.P4S.UL	12	28	8	0.3	0.3	6	0.02	5.6	2.8	50000		14.5	25.5	0.3	0.1
B7001E.T.P4S.UL	12	28	8	0.3	0.3	6	0.02	5.6	2.8	50000	75000	14.5	25.5	0.3	0.1
B7002C.2RSD.T.P4S.UL	15	32	9	0.3	0.3	8	0.03	6.2	3.4	48000		18.5	28	0.3	0.1
B7002C.T.P4S.UL	15	32	9	0.3	0.3	8	0.03	6.2	3.4	48000	70000	18.5	28	0.3	0.1
B7002E.T.2RSD.T.P4S.UL	15	32	9	0.3	0.3	10	0.03	6	3.25	43000		18.5	28	0.3	0.1
B7002E.T.P4S.UL	15	32	9	0.3	0.3	10	0.03	6	3.25	43000	63000	18.5	28	0.3	0.1
B7003C.2RSD.T.P4S.UL	17	35	10	0.3	0.3	9	0.04	8.65	4.9	43000		20	31.5	0.3	0.1
B7003C.T.P4S.UL	17	35	10	0.3	0.3	9	0.04	8.65	4.9	43000	63000	20	31.5	0.3	0.1
B7003E.2RSD.T.P4S.UL	17	35	10	0.3	0.3	11	0.04	8.3	4.75	38000		20	31.5	0.3	0.1
B7003E.T.P4S.UL	17	35	10	0.3	0.3	11	0.04	8.3	4.75	38000	56000	20	31.5	0.3	0.1
B7004C.2RSD.T.P4S.UL	20	42	12	0.6	0.6	10	0.7	10.4	6	36000		24.5	37	0.6	0.3
B7004C.T.P4S.UL	20	42	12	0.6	0.6	10	0.7	10.4	6	36000	53000	24.5	37	0.6	0.3
B7004E.2RSD.T.P4S.UL	20	42	12	0.6	0.6	13	0.07	10	5.7	32000		24.5	37	0.6	0.3
B7004E.T.P4S.UL	20	42	12	0.6	0.6	13	0.07	10	5.7	32000	48000	24.5	37	0.6	0.3
B7005C.2RSD.T.P4S.UL	25	47	12	0.6	0.6	11	0.08	14.6	9.15	30000		28.5	43	0.6	0.3
B7005C.T.P4S.UL	25	47	12	0.6	0.6	11	0.08	14.6	9.15	30000	45000	28.5	43	0.6	0.3
B7005E.2RSD.T.P4S.UL	25	47	12	0.6	0.6	14	0.08	13.7	8.65	28000		28.5	43	0.6	0.3
B7005E.T.P4S.UL	25	47	12	0.6	0.6	14	0.08	13.7	8.65	28000	43000	28.5	43	0.6	0.3
B7006C.2RSD.T.P4S.UL	30	55	13	1	1	12	0.12	15	10.2	26000		35.5	50	1	0.3
B7006C.T.P4S.UL	30	55	13	1	1	12	0.12	15	10.2	26000	40000	35.5	50	1	0.3
B7006E.2RSD.T.P4S.UL	30	55	13	1	1	17	0.12	14.3	9.8	24000		35.5	50	1	0.3
B7006E.T.P4S.UL	30	55	13	1	1	17	0.12	14.3	9.8	24000	38000	35.5	50	1	0.3
B7007C.2RSD.T.P4S.UL	35	62	14	1	1	14	0.16	19	13.7	22000		40.5	56	1	0.3
B7007C.T.P4S.UL	35	62	14	1	1	14	0.16	19	13.7	22000	36000	40.5	56	1	0.3
B7007E.2RSD.T.P4S.UL	35	62	14	1	1	18	0.16	18.3	12.9	20000		40.5	56	1	0.3
B7007E.T.P4S.UL	35	62	14	1	1	18	0.16	18.3	12.9	20000	34000	40.5	56	1	0.3
B7008C.2RSD.T.P4S.UL	40	68	15	1	1	15	0.2	20.4	16	20000		46	61.5	1	0.3
B7008C.T.P4S.UL	40	68	15	1	1	15	0.2	20.4	16	20000	34000	46	61.5	1	0.3
B7008E.2RSD.T.P4S.UL	40	68	15	1	1	20	0.2	19.6	15	19000		46	61.5	1	0.3
B7008E.T.P4S.UL	40	68	15	1	1	20	0.2	19.6	15	19000	32000	46	61.5	1	0.3
B7009C.2RSD.T.P4S.UL	45	75	16	1	1	16	0.24	27.5	21.2	18000		50	69.5	1	0.3
B7009C.T.P4S.UL	45	75	16	1	1	16	0.24	27.5	21.2	18000	30000	50	69.5	1	0.3
B7009E.2RSD.T.P4S.UL	45	75	16	1	1	22	0.24	26.5	20	17000		50	69.5	1	0.3
